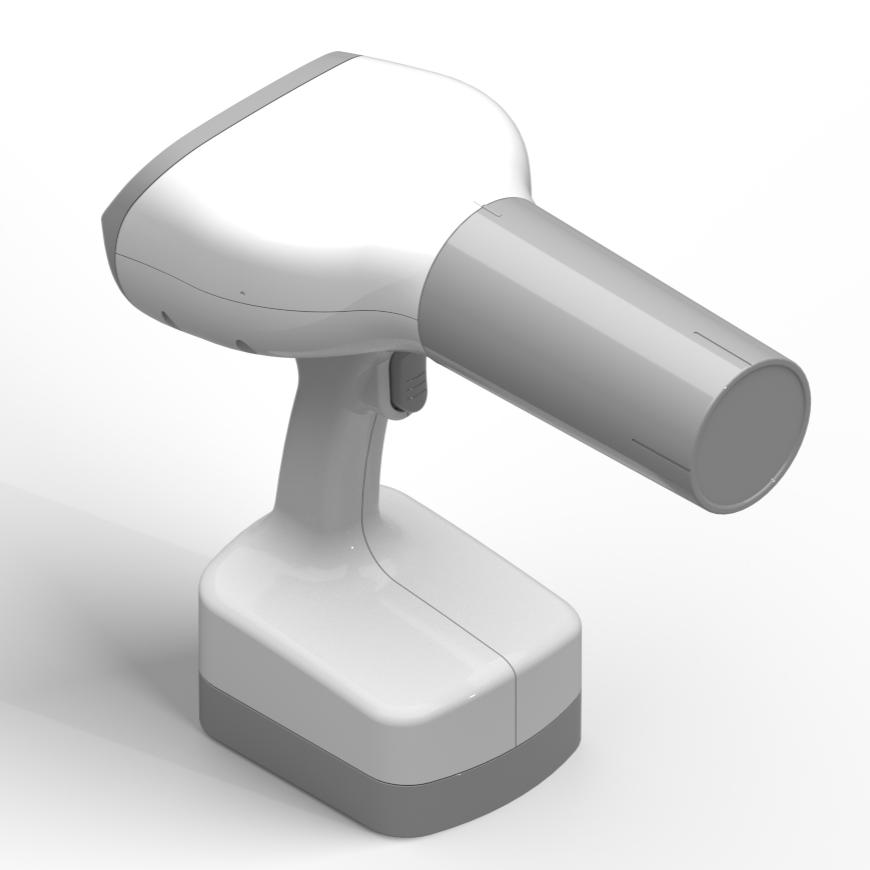

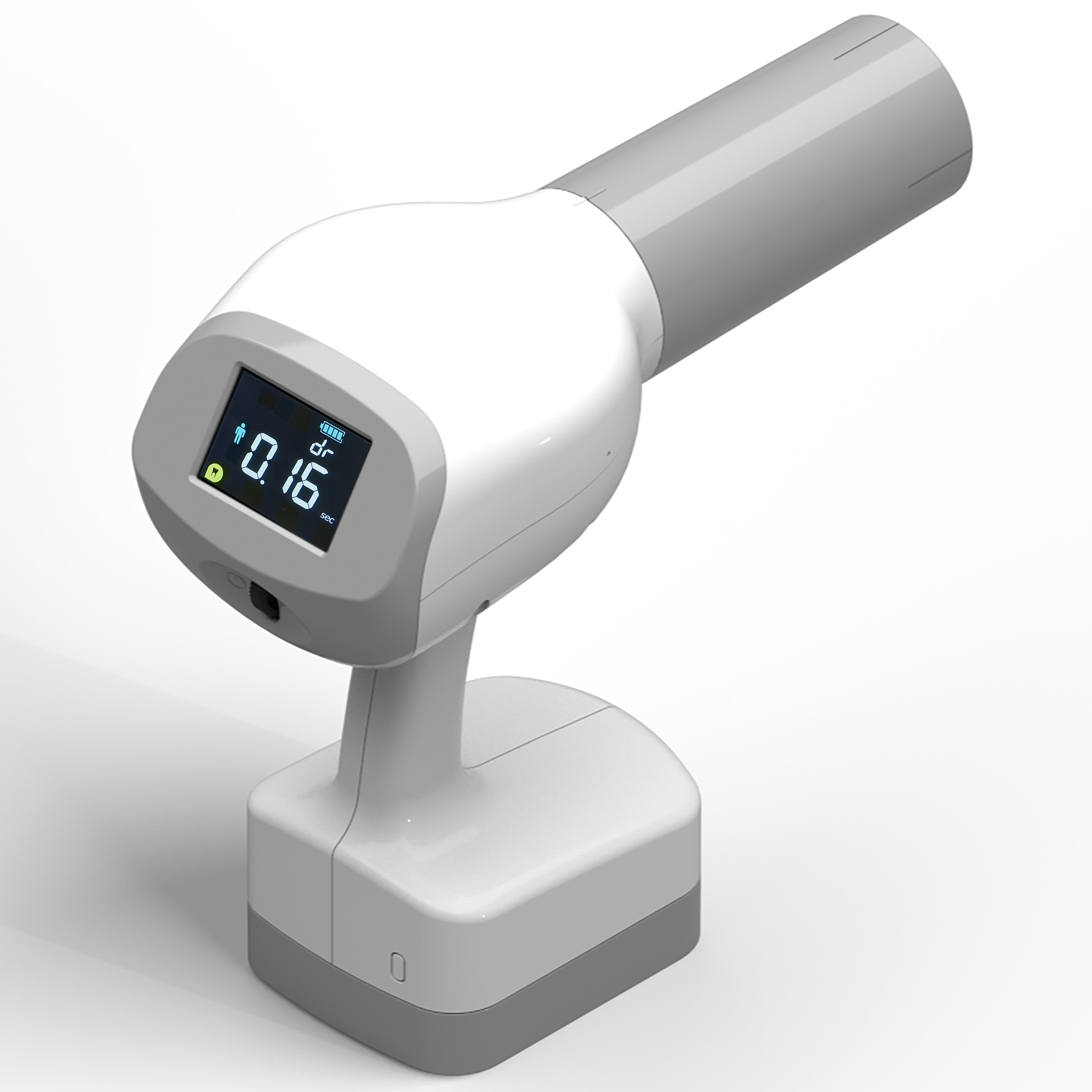

Portable X-ray NR-F100 that can be photographed with one hand

Superior image quality
Tube focal spot 0.4mm provides much more clear image processing and much wider range, which corresponds to CR and Film.

Specifications

Product name	NR-F100
Tube Voltage	70 kV(Fixed)
Tube Current	2 mA(Fixed)
Target Angle	12 °
Tube Focal Spot	0.4 mm
Time Setting	0.01 ~ 1.5 sec(0.01sec, step)
Power Charger	Input AC 100 ~ 240V, Output DC 12V
Main body Weight	1.6 kg( 3.5 lbs)

•
•
•

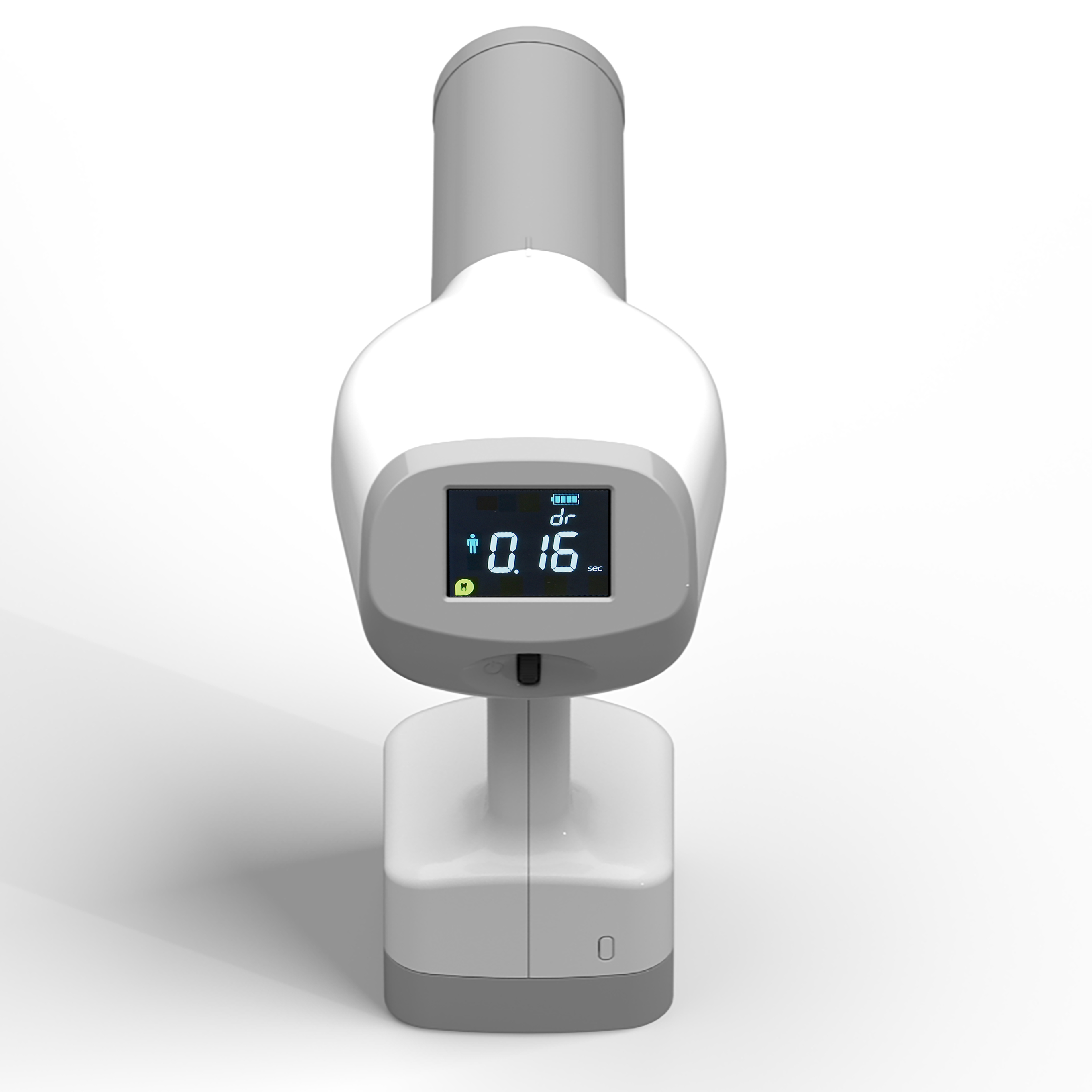

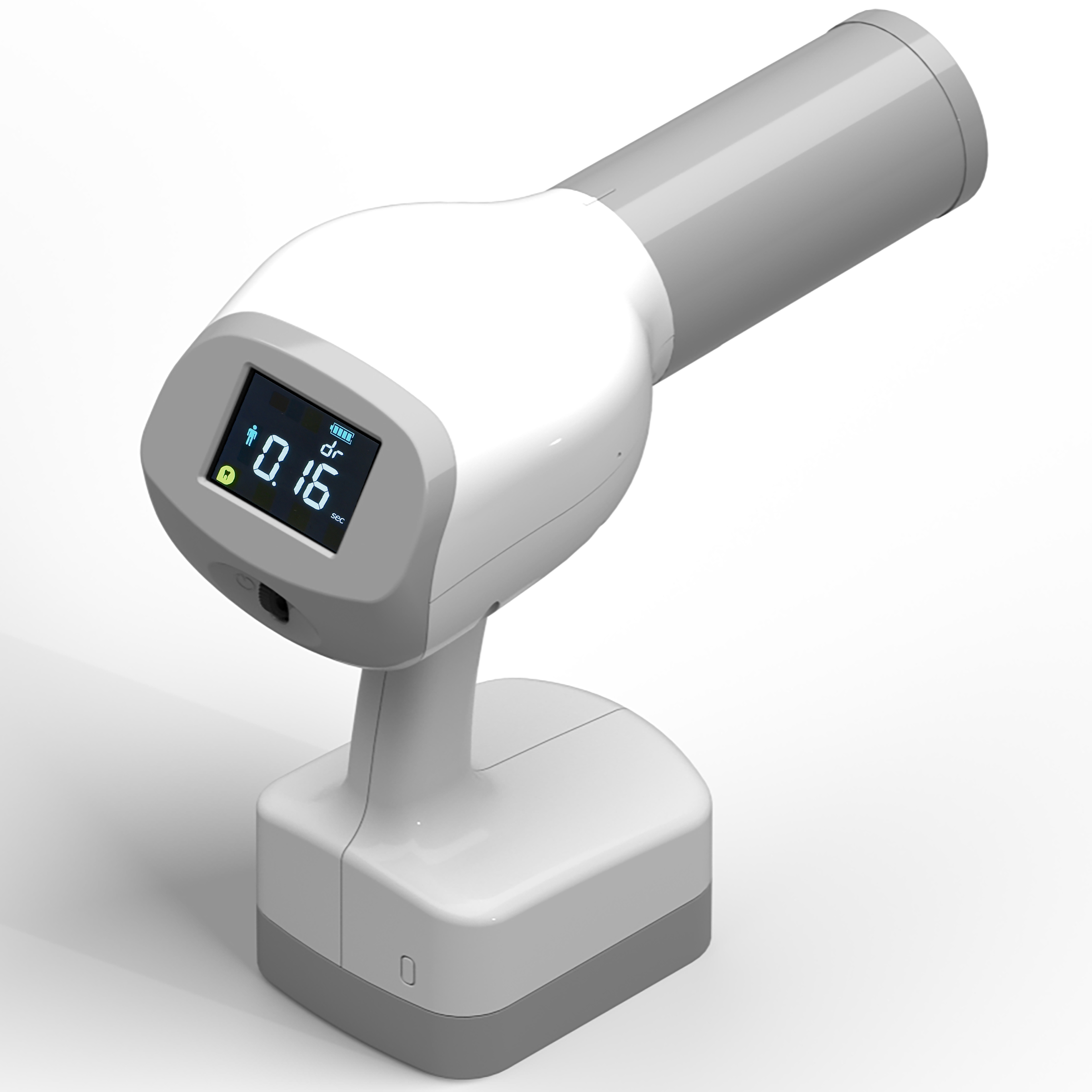

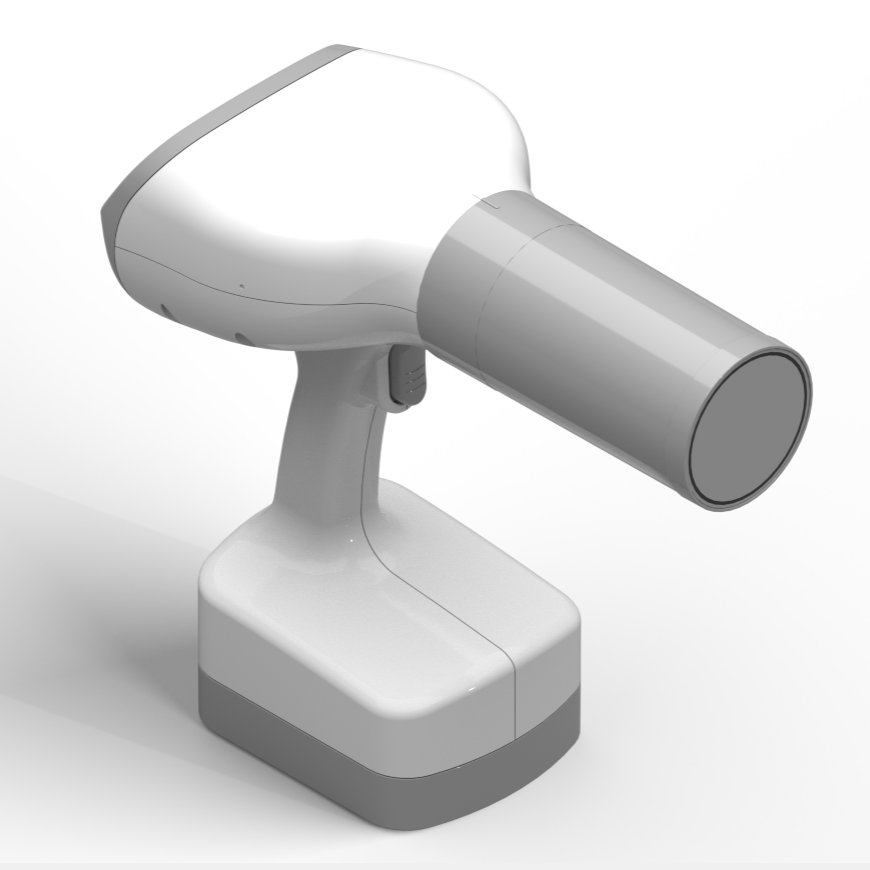

Our State-of-the-art ergonomic design that allows one-handed shooting. NR-F300

High Performance
The best image with high performance.

Specifications

Product name	NR-F300
Tube Voltage	60 kV, 70 kV
Tube Current	3 mA
Target Angle	12 °
Tube Focal Spot	0.4 mm
Time Setting	0.01 ~ 1.0 sec(0.01sec, step)
Power Charger	Input AC 100 ~ 240V, Output DC 12V
Main body Weight	1.6 kg( 3.5 lbs)

•
•
•

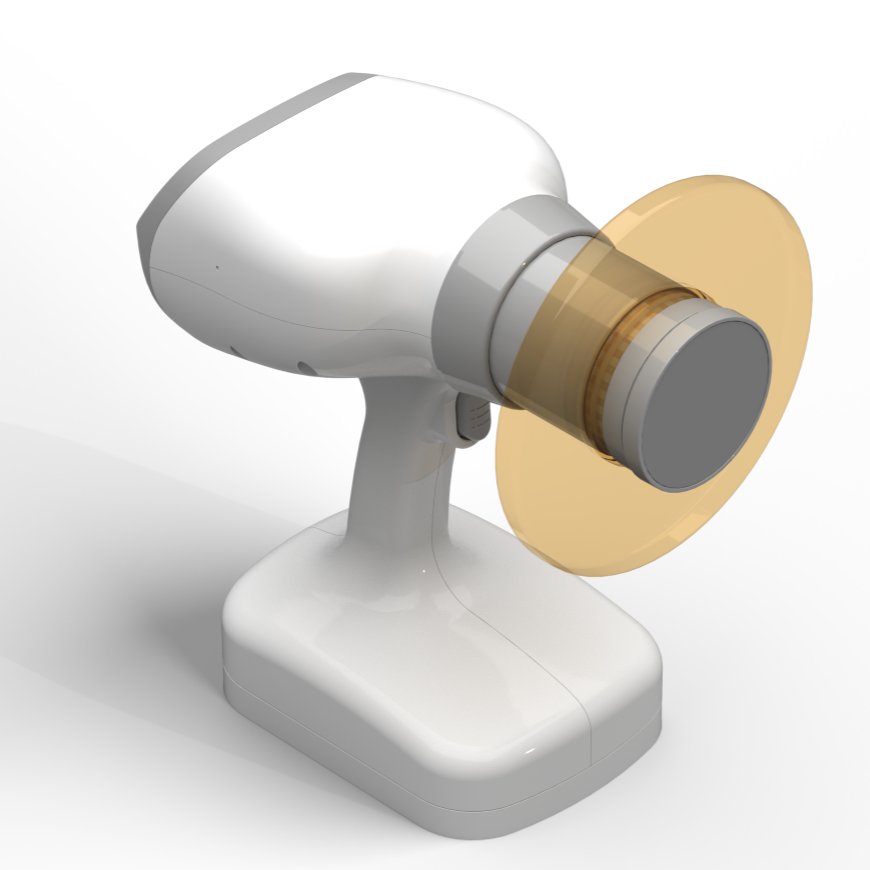

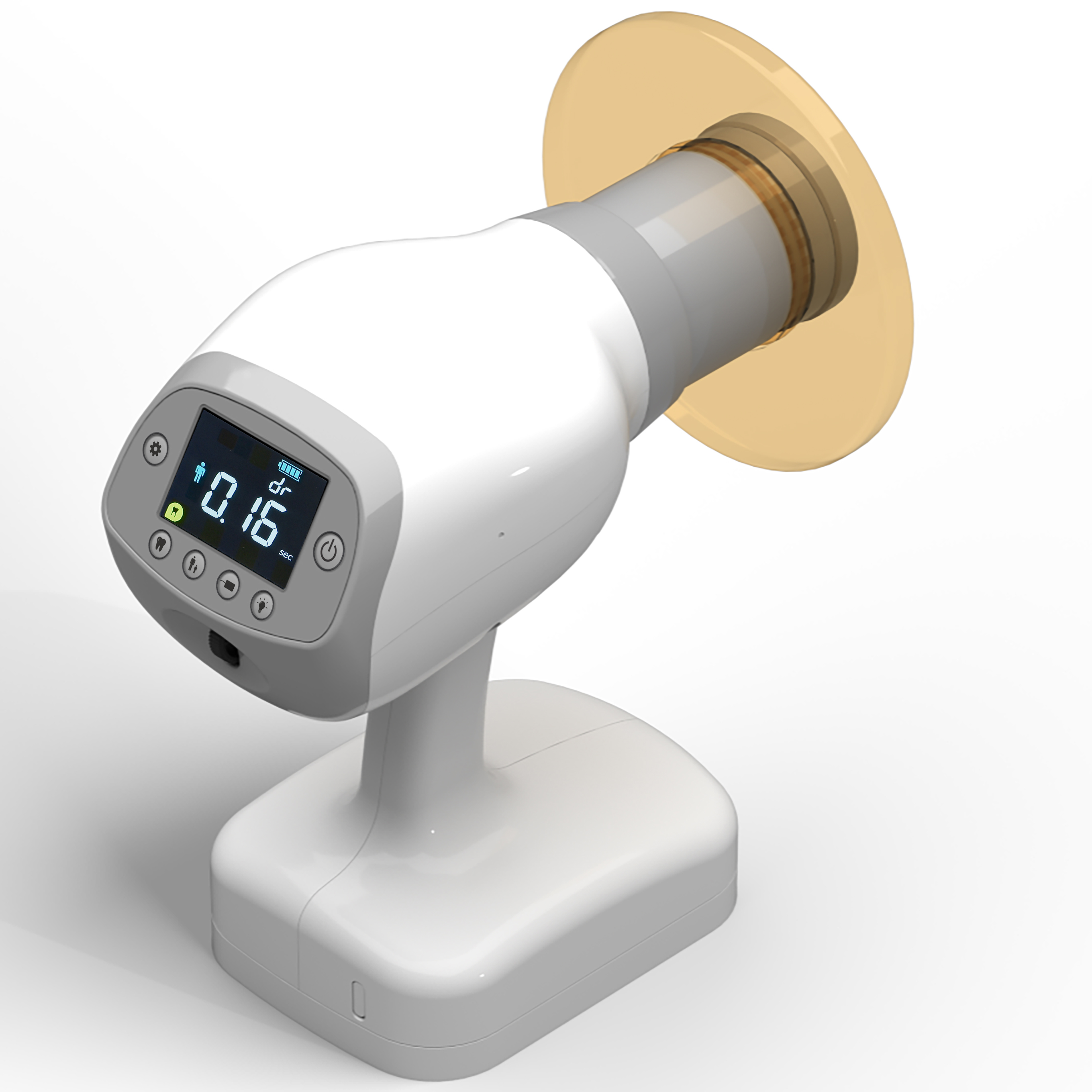

High Image Quality NR-F350

High performance X-Ray Power.
Easy charging the power with the cradle.

Product Characteristics

• Convenience control with one hand control.
• Advanced technology with Ultra capacitor.
• Ergonomic design for one hand usage.

Specifications

Product name	Portable Dental X-ray
Brand name	NR-F350, CS 2400P, CS 2300P, R2 Port-X
Model name	NP-350E
Tube Voltage	70 kV(Fixed)
Tube Current	3.5mA(Fixed)
Target Angle	12 °
Tube Focal Spot	0.4 mm
Time Setting	0.06 ~ 1.0 sec(0.01sec, step)
Power Charger	Input AC 100 ~ 240V, Output DC 18V
Main body Weight	1.9 kg( 4.1 lbs)

※ Backscatter shield is optional
